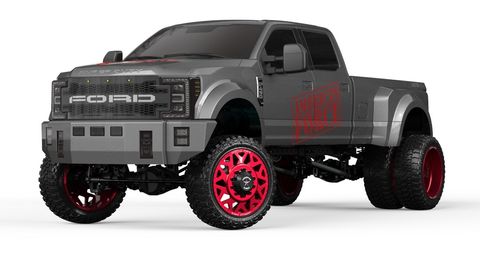

CEN 1:10 Ford F450 SD Custom Truck RTR Titanium Grey, Redcat T/X
CEN8981
Stock Level:
Low Stock
Description
F-450 SD 1/10 4WD Solid Axle Custom Truck
Needed to complete:
- 2-3S Lipo w/T-Style Connector
- Charger
- (4) "AA" Batteries for Transmitter
Features
ESC
- 40A WP-1040-Brushed (Powered by HobbyWing).
- Water-proof and dust-proof for all weather.
- Built-In Capacitor Module.
- Automatic throttle range calibration.
- Low voltage cut-off protection for Li-Po (lithium polymer) and NiMH battery.
- Over-Heat protection and throttle signal loss protection.
Motor
- RS-550 High Torque Motor
- Powered By Mabuchi Motor.
Servo
- 12Kg Servo O.E.M. by Savox.
- 4.8V 0.26 sec/60° 10.0 kg-cm
- 6.0V 0.23 sec/60° 12.0 kg-cm
- 25T Horn Gear Spline
Radio System
- Pistol-Grip Mod-3S 3 Channel Transmitter
- Digital Trimming
- Steering Dual-Rate (ST D/R) Adjustment
- End Point Adjustment (EPA)
- Build in Failsafe
- Power Alarm Chassis:
- DVP (Dual Vertical Plate) Chassis Design
- Sealed Receiver Compartment
- Easy Access/Quick Release Battery Tray
- Battery Tray Size 146x50x25mm
- Adjustable Wheelie Bar Ready (w/Ball Bearing)
- Full Precision Ball Bearing Support
- Adjustable Turnbuckles
- Harden Steel Steering Drag Link
- Fully Equipped with Allen Hex Screws
- Adjustable Body Post
- High Torque Servo Horn Safer
- Optional 4-Wheel Steering Design
Body
- Scale Realistic Body Details
- F-450 Super Duty Offical Licensed by Ford Motor
Chassis
- Steel Frame Rails
- CMS(Chassis Mounted Servo) Chassis Design
- Stamped Steel Shock Hoops
- Steel Skid Plate
- Sealed Receiver Compartment
- Full Precision Ball Bearing Support
- High Torque Servo Horn Saver
- Easy Access Battery Tray
- Battery Tray Size 138.5 x 47 x 24mm
Suspension
- 3 Links Suspension with Panhard Bar Design
- Big Bore Oil Filled Adjustable Coil Over Shocks
- 12mm Over Size Shock Body with 3mm Hardend Steel Polished shaft
- Hardened Steel Steering Drag Link
- 6mm Aluminium Linkage
- Sway Bar Included
- Adjustable Wheelbase (w/optional center shaft)
Drivetrain
- Metal Transmission Gears
- 4 Wheel Drive
- Center Shaft Drive Train for more power transferred to the wheels
- Hight Efficient Transmission System
- Wide Range Easy Changeable Gear Box Design
- Sealed Transmission Case
- Sealed Axle housing
- Planetary Gear Type Differential
- Slipper Clutch Drive System
Gear Ratio
- Hi/Speed Ratio 1.56:1
- Hi/Torque Ratio 2.8:1
- Ring & Pinion 30/15T 2:1
- Spur Gear & Pinion Gear 32p 56T/32p 10T
Wheel
- Official Licensed American Force H01 Contra Wheel
- Size: 66 x 37.50mm
