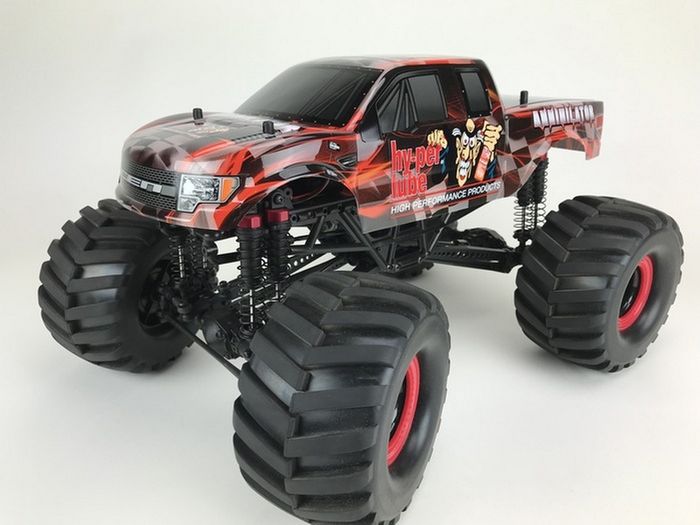

CEN 1:10 FORD HL150 MT-Series Solid AxleRTR Monster Truck

CEN8965
Stock Level:
Low Stock

Description

Hy-per Lube HL150 1/10 scale MT series Solid Axle Monster truck!

Needed to complete:
  • 2-3S Lipo w/T-Style Connector
  • Charger
  • (4) "AA" Batteries for Transmitter

Features

ESC

  • 40A WP-1040-Brushed (Powered by HobbyWing).
  • Water-proof and dust-proof for all weather.
  • Built-In Capacitor Module.
  • Automatic throttle range calibration.
  • Low voltage cut-off protection for Li-Po (lithium polymer) and NiMH battery.
  • Over-Heat protection and throttle signal loss protection.
  • Easily programmed with jumpers.

Motor

  • RS-550 High Torque Motor
  • Powered By Mabuchi Motor.

Servo

  • 12Kg Servo O.E.M. by Savox. 4.8V 0.26 sec/60° 10.0 kg-cm
  • 6.0V 0.23 sec/60° 12.0 kg-cm
  • 25T Horn Gear Spline

Radio System

  • Pistol-Grip Mod-3S 3 Channel Transmitter
  • Digital Trimming
  • Steering Dual-Rate (ST D/R) Adjustment
  • End Point Adjustment (EPA)
  • Build in Failsafe
  • Power Alarm Chassis:
  • DVP (Dual Vertical Plate) Chassis Design
  • Sealed Receiver Compartment
  • Easy Access/Quick Release Battery Tray
  • Battery Tray Size 146x50x25mm
  • Adjustable Wheelie Bar Ready (w/Ball Bearing)
  • Full Precision Ball Bearing Support
  • Adjustable Turnbuckles
  • Harden Steel Steering Drag Link
  • Fully Equipped with Allen Hex Screws
  • Adjustable Body Post
  • High Torque Servo Horn Safer
  • Optional 4-Wheel Steering Design

Suspension

  • 8 Big Bore Oil Filled Coil Over Shocks
  • Aluminum Anodized Shock Caps
  • 10mm over size shock body with 3mm hardened steel polished shaft.
  • Stiff Hard Racing Spring
  • Fixed Wheelbase
  • Ride Height- Adjustable with pre-load
  • Realistic 4-Link Suspension design

Drivetrain

  • Sway bar & wheelie bar included
  • 4 Wheel Drive.
  • Center Shaft Drive Train for more power transferred to the wheels.
  • Hight Efficient Transmission System.
  • Wide Range Easy Changeable Gear Box Design.
  • Sealed transmission eliminates dirt and dust substances to get in.
  • Sealed Axle housing.
  • 5mm Hardened Steel Axle shaft.
  • Differential Center Locker Front/Rear Planetary Gear Type
  • Ring & Pinion 30/15T. Specs:

Specifications

  • Length: 16inch (405mm)
  • Width: 12.20inch (310mm)
  • Wheelbase: 10.82inch (275mm)
  • Ground Clearance: 3.14inch 80mm
  • Weight: 4.85 lb. 2.2kg

Wheel

  • Deep Dish 2.2-inch (55mm) Monster Truck Wheel
  • Tires: Monster Truck V-Pattern Tire 55x136x74mm
