Sig 1/4 J3 Kit 2667mm WS 60/.91-90/1.824C
Description

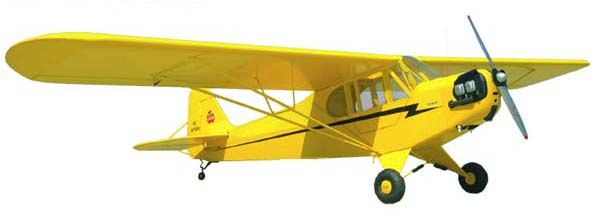

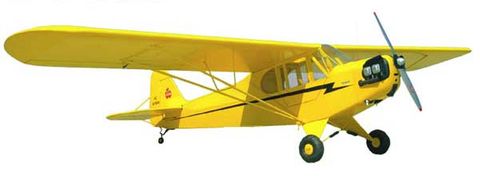

A 1/4-scale model of America's Favorite Light Plane
The yellow Piper J-3 Cub is one of aviation's genuine classics. There was a time when the general public thought that every airplane flying was either a DC-3 or a Piper Cub. More than 20,000 Cubs were built between 1937 - 1947, and for years after that it was the most commonly seen airplane at airports all over the country.
J-3 Cub Model Airplane Forgiving flight characteristics, light wing loading, and hands-off stability made it perfect for America's weekend pilots. The Cub design is ideal for R/C flying and makes an excellent first-time 1/4-scale project.
Wingspan 105 in 2667 mm
Wing Area 1600 in? 103 dm?
Weight 14 - 16 lb 6350 - 7257 g
Length 67 in 1701 mm
Radio Req. 4-Channel
Engine Req. .60 - .90 in? (9.8 - 14.7 cm?) 2-Stroke
.90 - 1.60 in? (14.7 - 26.2 cm?) 4-stroke
KIT FEATURES
Easy-to-Build Balsa, Plywood, and Spruce Construction
Molded ABS Plastic Engine Cowling
Molded ABS Plastic Scale Dummy Engine
Molded ABS Plastic Bungee Covers and Air Cleaner Details
Fiberglass Elevator & Rudder Pushrods
Scale-Like Leaf-Spring Steerable Tailwheel Assembly
Complete Hardware Pack Includes Nylon
Hinges, R/C Links and Threaded Rods,
Control Horns, Wing Bolts, Blind Nuts, Etc.
Die-Cut Parts
Aileron Pushrods
Formed Main Landing Gear Wires
Spruce & Aluminum Wing Struts
Brass Tube Jury Struts
Adjustable Tail Brace Wires
Easy-to-Transport 2-Piece Wing Design
Authentic Decals
4 Sheets of Full-Size Plans
Photo-Illustrated Instruction Book
Scale Data on the Full-Size Airplane
