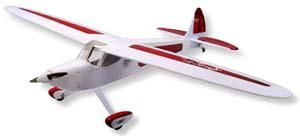

Sig Rascal 80 Red/White 2032Mm Ws

Description

SIG RASCAL 80 EGARF RED/WHITE 2032MM

The Return of a Legend!

The legend of the RASCAL began with a small rubber powered free-flight model in the 1950s. Adapted for modern radio control, the RASCAL's classic good looks and dream-come-true flying characteristics have made it the favorite everyday airplane of thousands of R/C pilots.

SIG's 80 inch wingspan version of the Rascal gives you the option of using either glow or electric power. Whichever power system you choose, you'll find that the RASCAL flies as good as it looks.

Streamlining and a high performance airfoil allow the RASCAL 80 EG ARF to do aerobatic maneuvers better than most typical high wing designs. This will very likely become your favorite everyday R/C airplane!

Removable magnetic hatch for easy access and quick battery change for electric power installations.

Fiberglass Cowling, molded clear windshield and side windows. Aluminum main landing gear with fiberglass wheel pants.

“EG” means it can be flown with electric or glow power. Here is a typical electric installation.

Surface-mounted aileron servos are easy to install.

There's plenty of room in the battery compartment for any 4-5S 4000-5000mAh LiPo Battery Pack.

A two-piece wing with aluminum joiner tube makes transportation and storage easy!

KEY FEATURES:

• 80” Wingspan (.46-.55 size)
• SIG EG Series - For Electric or Glow Power
• Handcrafted Wood ARF
• CAD Drawn, Laser Cut, and factory Jig Assembled
• 2-Piece Wing Design with Aluminum Tube Wing Joiner
• Clear Windshield and Side Windows
• Magnetic Top Hatch
• Aluminum Landing Gear
• Fiberglass Cowling and Wheel Pants
• Covered with Oracover® (akaUltraCote®) Premium Film
• Complete Pushrods and Hardware
• Illustrated Assembly Manual

All major components are factory built and ready for final assembly. Covered in Oracover® (aka UltraCote®) Premium Film.

Additional Items Required:

• 4-Channel Radio System with 4 or 5 Standard Servos
• .46-.55 cu.in. 2-Stroke Glow Engine, or .53-.65 cu.in. 4-Stroke Glow Engine, or 600-1100 Watt Electric Motor System
• Propeller (sized to your engine or motor)
• Fuel Tubing & Engine Mount Bolts (for glow)
• CA Adhesives and Epoxy Glue

Tools Required:

• Hobby Knife with #11 Blades
• Screwdriver Assortment
• Pliers Assortment
• Drill with Selection of Bits

SPECIFICATIONS:

Wingspan           80 in      2032 mm

Wing Area          800 sq. in            51.7 sq. dm

Length  56 in      1422.4 mm

Flying Weight    7 - 7.5 lbs.          3175 - 3402 g

Wing Loading    16 - 18 oz/sq. ft.              46 - 51 g/sq. dm

Radio Required Electric: 4-Channel with 4 Standard Servos

Glow: 4-Channel with 5 Standard Servos

Glow Power:      2-Stroke .46-.55 cu.in.

4-Stroke .53-.65 cu.in.    7.5 - 9 cc

8.7 - 11 cc

Electric Power:  Brushless Outrunner Motor 600 - 1100 w;

400 - 700 kV; 60-80A Speed Control (ESC);

4-5S 4000 - 5000 mAh LiPo Battery Pack
