Balsa Usa 1/3 Stearman Pt-17 Kit 2946Mm70-120Cc*

BUSA460
Stock Level:
Out of Stock

Description

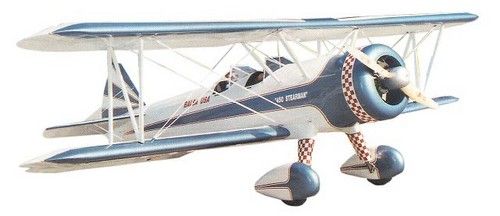

Balsa USA Kit No. 460 1/3 Stearman PT-17 2946mm

Ultimate Series Giant Scale Kit

Our 30% scale Stearman has been designed for those who want the very best. Our Ultimate Series kits redefine the concept of a complete kit. All hardware items are included, absolutely everything - socket head bolts, aircraft lock nuts, Kwik-Links, threaded rods, scale fittings, Gold-N-Rods etc. A separate plan details all the scale pinking tape and rib stitching to make your model a masterpiece. The complete step-by-step photo illustrated 41 page instruction book covers not only the basic construction, but also shows how to accomplish all scale details right down to panel lines and rivet detail in the cowl. The landing gear is not only scale in detail, but functional as well with working oleo struts. To complete the gear, scale tail and main wheels are included as well. A truely magnificent scale kite.

2 Place Military/Civil Biplane

Kit Features

  • Eight Full Sheets of Rolled Plans
  • 41 Page Photo Illustrated Instruction Book
  • Totally Complete Hardware Package (Including all push rods and cables)
  • Fully Functional Scale Landing Gear with Oleo Struts
  • Scale Steel Fittings and Flying Wires
  • Scale Instrument Panels - for both Cockpits
  • Complete Leaf Tail-Wheel Assembly
  • Spun Aluminium Cowl
  • Separate Plug-in Wing Panels
  • Wheels and Scale Screws
  • Formed Basswood Cabane and "N" Struts
  • Accurate Jig Cut Balsa and Plywood Parts
  • Exclusive Balsa USA Fall-Out Die-Cut Parts
  • Scale Aluminium Panels with Scale Screws
  • ABS Formed Boot Cowl, LG Leg Fairings, Wheel Pants, Seats, Window Frames and Tail Cone.
  • Fuel and Smoke Tanks and more!

Specifications

  • Wing Span: 116 inches
  • Wing Area: 3617 sq. in.
  • Wing Loading: 25 1/2 - 32 oz./sq. ft.
  • Flying Weight: 40-50 lbs
  • Fuselage Length: 92 Inches
  • Height: 36 inches
  • Engine Size: 70-120 cc Gasoline 4.27 to 13 cu./in.
  • Cowl Diametre: 13 1/2 inches
